Introduction

With the WARP Charger Stand, we offer a high-quality mounting option for our WARP Charger chargers. One WARP Charger can be mounted on the front of the stand. Depending on the version, a second WARP Charger can also be mounted on the back. A subsequent upgrade from one to two chargers is conceivable, as only the rear part of the stand needs to be replaced.

Using the included mounting aid, the foundation for the stand including cable entry can be prepared. After curing, the stand can simply be screwed onto the mounting aid. The mounting aid guides a conduit or directly the supply lines into the column. The mounting screws are internal and thus protected from external access. The column has a split rear wall. Via the lower part of the rear wall, the supply lines are easily accessible and connection of the column is simple.

If desired, the stand can be ordered pre-wired, so that the supply line only needs to be connected in a distribution box already installed in the stand.

Variants​

The WARP Charger Stand is available in two different variants:

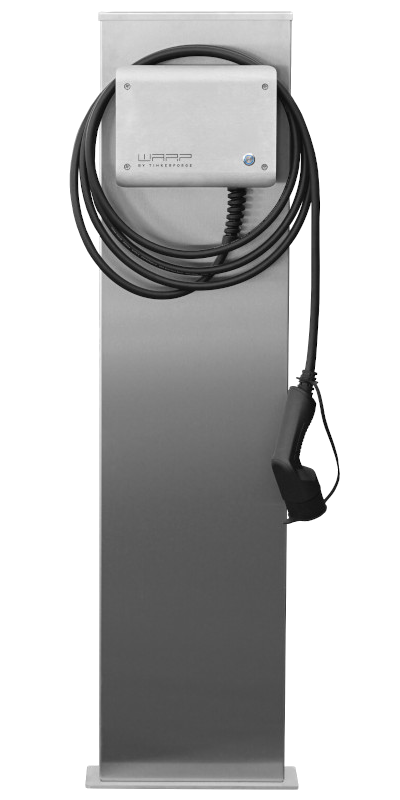

Variant V4A Stainless Steel​

This stand is made of 1.5mm thick V4A stainless steel.

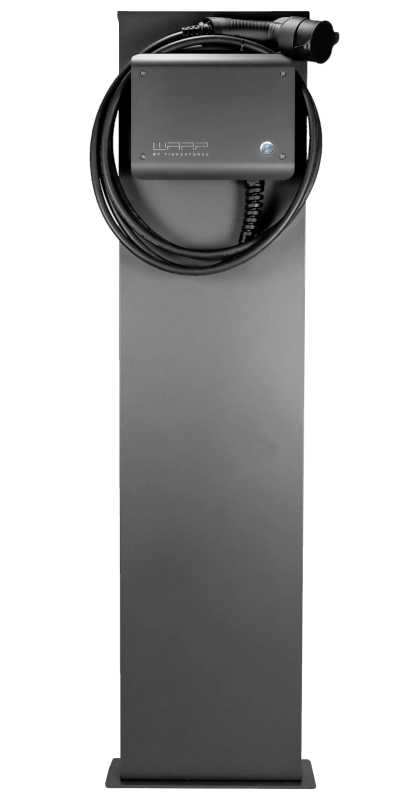

Variant Galvanized Steel DB703​

This stand is made of 2.0mm thick galvanized steel and is additionally powder-coated in DB703.


Access Protection​

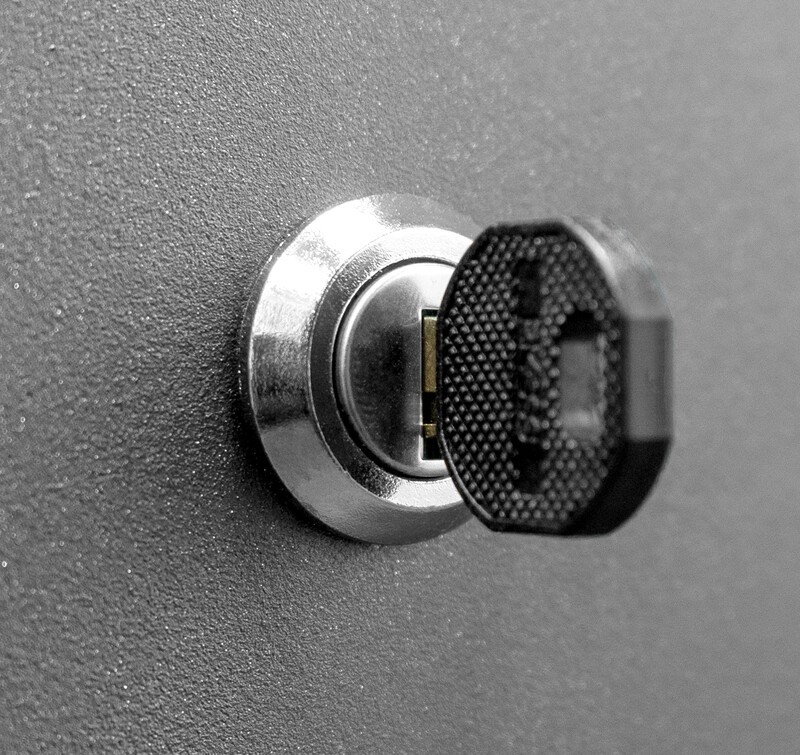

The WARP Charger Stand has two doors on the back. Each door is secured with two rotary latches. If access needs to be protected, these doors can be fitted with locks. These are offered as accessories.


At least two locks per stand are required. Each lock secures one door on the back by replacing a rotary latch with a lock.

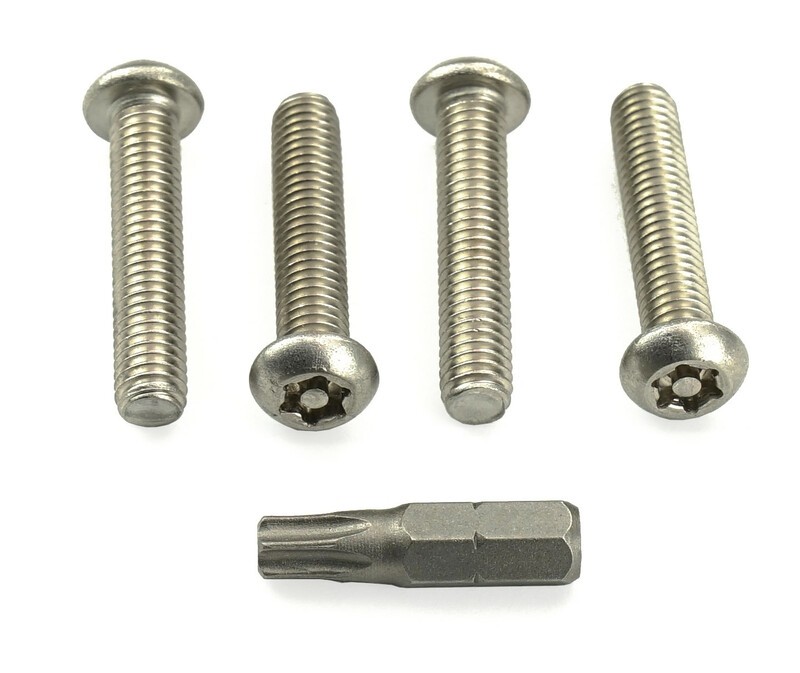

The chargers can be opened with a screwdriver. If these should also be protected from access, special security screws can be used. Only with the included special bit can the screws then be turned. These security screws are also available as accessories.
