Introduction
The WARP4 Charger Stand is a freestanding mounting solution for one or two WARP4 Chargers. Smart and Pro variants can be combined freely. The chargers are ordered separately.
The stand is made of 2 mm galvanised steel with a DB703 powder coating. Its IP54 rating makes it suitable for outdoor installation. It is manufactured in Germany. The supplied preassembled mounting jig positions the threaded rods in the concrete foundation. The stand is bolted down from inside, and its split rear panel gives access to the supply cables.

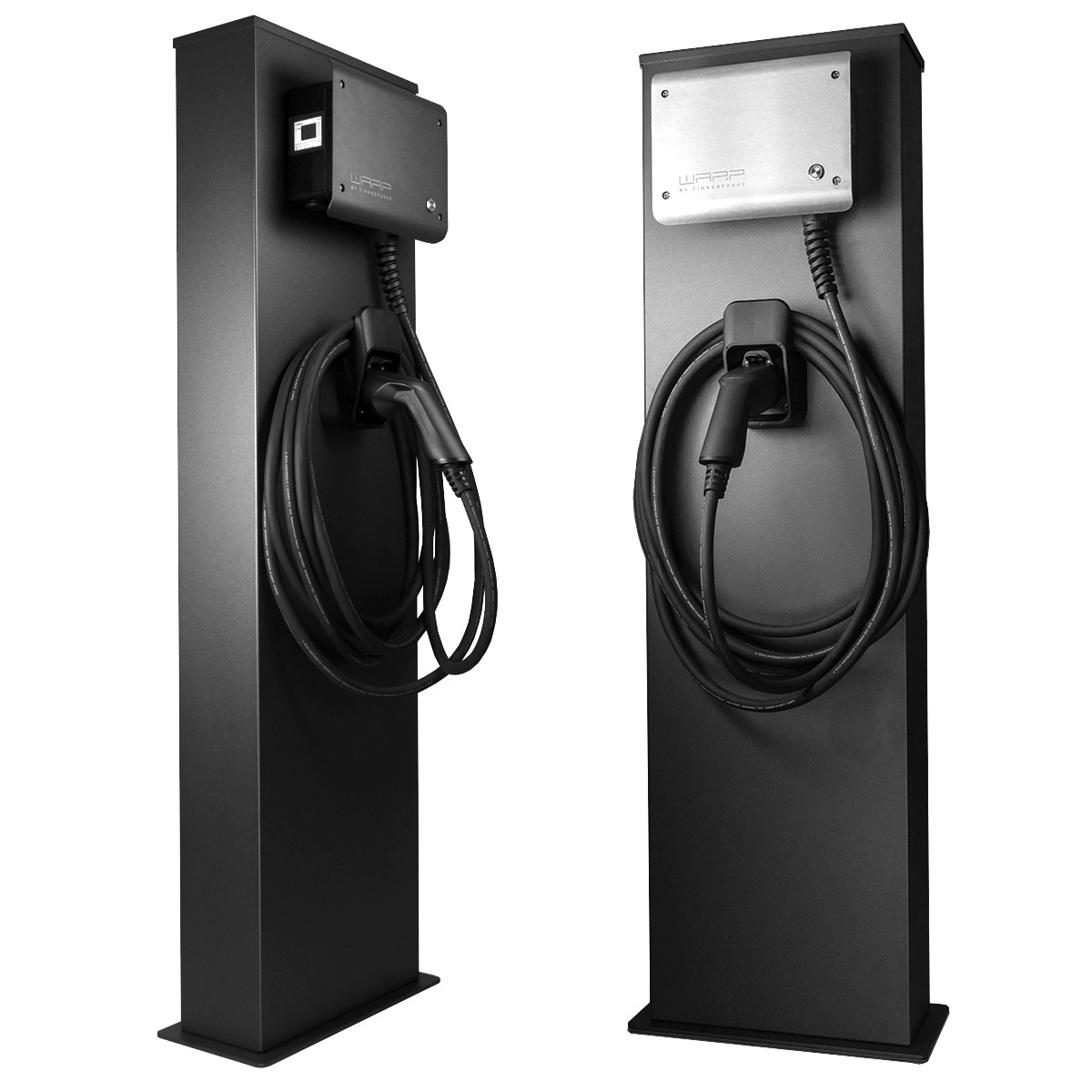

Variants
- For one charger: Mounting position on the front, with a closed upper rear panel.
- For two chargers: One mounting position each on the front and rear.
The single-charger version can be converted by replacing the upper rear panel with a panel containing the openings and mounting points for a second charger. Both chargers must be fitted on the two-charger version; the second mounting position must not be left open.
The WARP4 stand is designed exclusively for WARP4 Chargers. For the previous model, see WARP Charger Stand.
Optional Distribution Enclosure
The stand can be ordered with or without a distribution enclosure and cable connection kit. The optional enclosure is equipped for one or two chargers with a DIN rail, terminals and a DIN-rail RJ45 coupler. It comes with the matching power, protective-earth and Ethernet patch cables.
The enclosure also offers space for additional components such as an Ethernet switch or LTE router. When installing the stand without this kit, suitable connection and protective-earth cables must be provided separately.
Access Protection
Each rear panel has two latches, opened with the supplied cabinet key. Remove the lower panel before removing the upper panel. The latches can optionally be replaced with locks.
